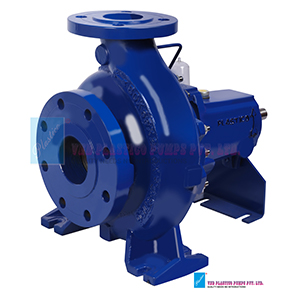

Centrifugal Pump with Open Impeller


We are offering Centrifugal Pump With Open Impeller. These are end suction, horizontal, centrifugal coupled pumps with semi open impeller.

Features:

  • Smaller volume using less floor space grease /oil lubricant bearing
  • Temp. up to 120oC
  • Suitable With V-belt drive or direct coupled with a motor
  • A heavy duty shaft, sturdy construction, simple design, back pull out design. Micro metric wears adjustable facility hence, works at constant head for a longer period
  • Non-clogging and handles solids up to 10 mm. Direction is clockwise from a drive end.

Applications:

  • Organic /inorganic chemicals volatile liquids, corrosive chemicals caustics process, effluent, filter press, slurry application
  • Pharmaceutical, dyes, textiles, kerosene, diesel and other solvents
  • ETP, STP & waste water treatment plant, fertilizers, cement and steel industries
  • For pumping chemicals, with solids in suspension polluted liquids widely used for public and civil engineering
  • Paper and pulp industries

Operating Range:

  • Capacity : up to 40 m3 /hr
  • Head : up to 48 hrs
  • Size : 25 mm to 65 mm
  • Temperature : 80oC
  • Speed : up to 3500 rpm
  • Pressure : up to 5 Kg/cm
  • M.O.C : C.I, C.S., SS-304/304L SS 316/316 L, Bronze, Alloy-20, CD4MCU, Hast alloy B & C, etc

Material of Construction:

  • Graded Grey Cast Iron Carbon Steel ( WCB)
  • Alloy Steel CF 8
  • CF 8 m CF 3
  • CF 3 m (SS-316 L) Alloy 20
  • CD 4 mcu. Nickle & Ni-Alloys
  • Ni-Resist 2-1 nicl
  • R55 Hastelloy- B/C
  • Gun Metal/Bronze
